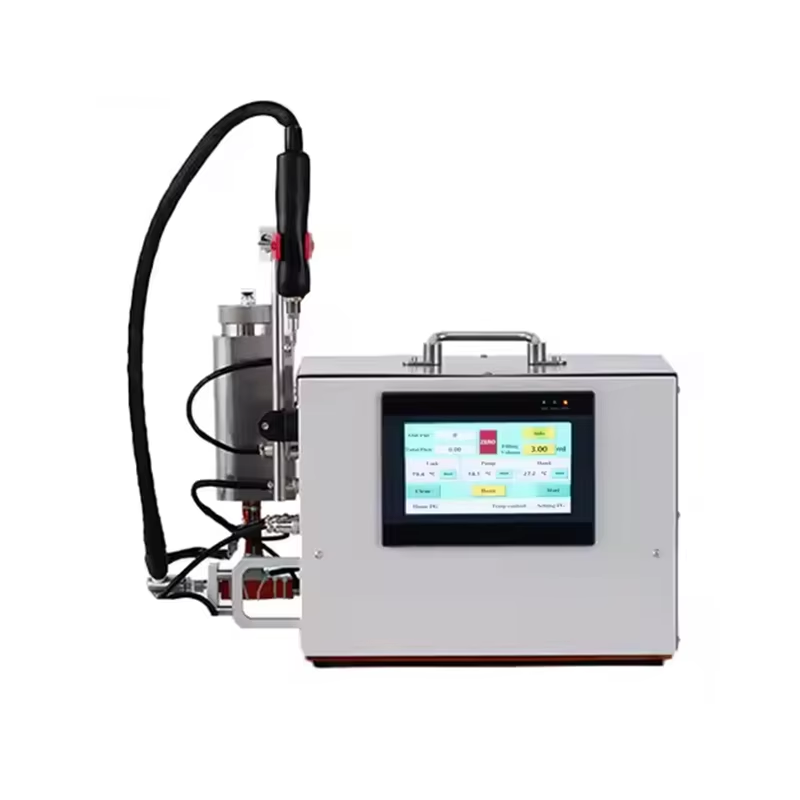

Semi-Automatic High-Precision Filling Machine
The ZW-100R Semi-Automatic High-Precision Filling Machine is a compact and efficient filling solution designed for accurately filling small-volume liquid and semi-liquid materials. With a filling range of 0.2–2 ml and a filling accuracy of up to ±0.005 ml, the machine is suitable for applications requiring precise and consistent dosing.
Equipped with a touchscreen control panel, adjustable filling volume and speed, and a built-in heating tank, the ZW-100R is easy to operate and does not require an external air compressor. Operators can simply set the desired filling volume and start the machine directly.
With an output of approximately 1,500–1,800 sticks per hour, this semi-automatic filling machine offers an excellent balance between precision, efficiency, and ease of operation.
Key Features
- High-Precision Filling: Filling accuracy up to ±0.005 ml
- Wide Filling Range: Adjustable filling volume from 0.2 to 2 ml
- Touchscreen Control: Intuitive and user-friendly interface
- No Air Compressor Required: Easy installation and operation
- Built-in Heating Tank: Suitable for materials requiring temperature control
- Adjustable Filling Speed: Flexible production speed adjustment
- Programmable Operation: Supports program selection and parameter adjustment
- Emergency Stop Function: Enhances operational safety
- Compact Design: Space-saving structure for different production environments
Main Applications
The ZW-100R can be used for filling a variety of liquid, semi-liquid, and viscous materials, including:
- Water
- Juice
- Milk
- Oil
- Beer
- Honey
- Chemical liquids
- Powder and other suitable filling materials
It is suitable for applications in the food, beverage, chemical, and other industries.

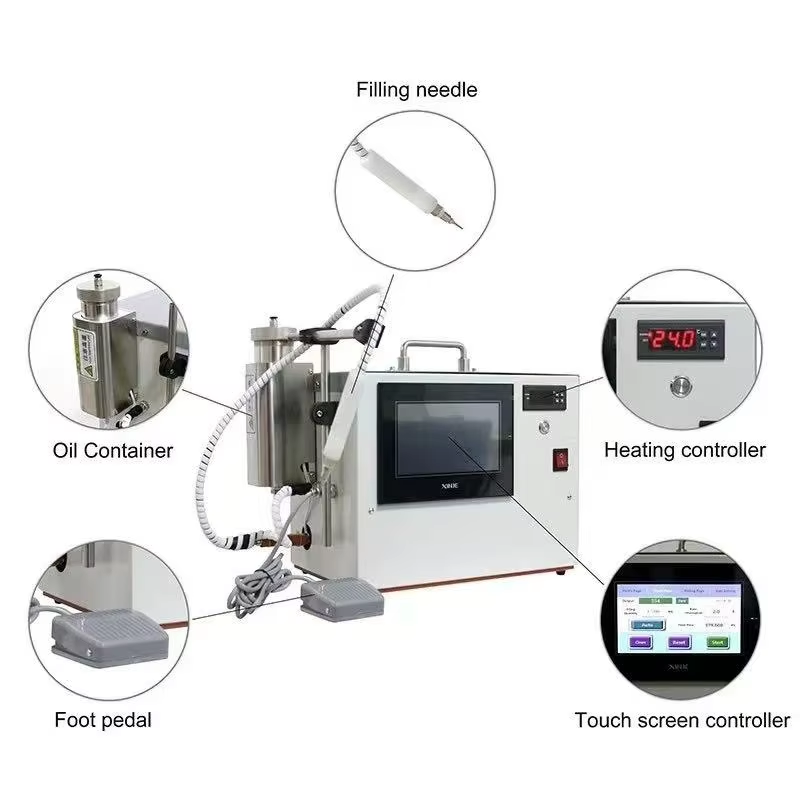

Control Functions
The touchscreen control system allows operators to easily adjust:
- Filling volume
- Filling speed
- Position adjustment
- Program selection
- Interface settings
The machine also features a dedicated emergency stop button for enhanced safety during operation.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | ZW-100R |
| Machine Type | Semi-Automatic Filling Machine |
| Filling Range | 0.2–2 ml |
| Filling Accuracy | ±0.005 ml |
| Output | 1,500–1,800 sticks/hour |
| Power Supply | AC 110–240V |
| Control Panel | Touchscreen |
| Heating Tank | Yes |
| Air Compressor | Not Required |
| Filling Speed | Adjustable |
| Application | Food, Beverage, Chemical |
| Machine Dimensions | 24 × 38 × 30 cm |
| Net Weight | Approximately 22 kg |
| Packaging | Wooden Case |
| OEM/ODM | Available |
